What is an Open Drainage System?

TL;DR: An open drainage system uses visible channels, ditches or surface drains to carry rainwater and surface water away from a property. It helps prevent flooding and water logging but needs regular cleaning and maintenance.

What Is an Open Drainage System?

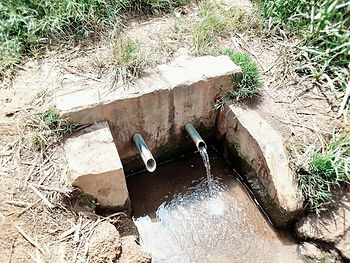

An open drainage system is a drainage setup that uses visible, uncovered channels, ditches, trenches, or surface drains to collect and carry away excess water.

Unlike a closed drainage system, which moves water through underground pipes, an open system keeps the water flow exposed to the air and relies mainly on gravity to direct it away from properties, roads, fields, or other surfaces.

How Does an Open Drainage System Work?

Open drainage is commonly used to manage rainwater, stormwater runoff and surface water. Water flows from roofs, driveways, patios, gardens or paved areas into an open channel, which then directs it to a soakaway, watercourse, larger drainage network or other safe discharge point.

Open drains can be simple earth ditches, but are often lined with materials such as concrete, brick, mortar or other durable surfaces. Lining helps the channel resist erosion, maintain a consistent flow path and make cleaning and maintenance easier.

Why Are Open Drainage Systems Used?

The main purpose of an open drainage system is flood and waterlogging prevention. By giving surface water a controlled route away from a building or landscape, it can reduce standing water, protect foundations and hard surfaces, limit soil erosion and make outdoor areas safer and more usable after heavy rain.

Benefits of an Open Drainage System

• Often relatively straightforward and cost-effective to construct

• Easy to inspect because the channel is visible.

• Blockages caused by leaves, silt, rubble or debris easier to identify and clear.

Drawbacks of an Open Drainage System

• Open drains can collect litter and silt, may create unpleasant odours if poorly maintained

• Can pose a safety risk if left uncovered

• They are not suitable for carrying foul sewage or contaminated wastewater

In Summary

An open drainage system is an above-ground, visible method of moving rainwater and surface water away from an area using open channels or ditches. It is a practical solution for managing stormwater, but it needs regular maintenance and should never be used as a substitute for a sealed foul-water drainage system.
